Adding a Loading Animation to JHipster Lite CLI

Have you ever run a command-line application and found yourself staring at a blank screen, wondering if it’s still working or if it’s frozen? That’s exactly the problem I set out to solve for the JHipster Lite CLI project. In this post, I’ll share how I implemented a loading animation to enhance the user experience while commands are executing.

The Problem: Waiting in the Dark

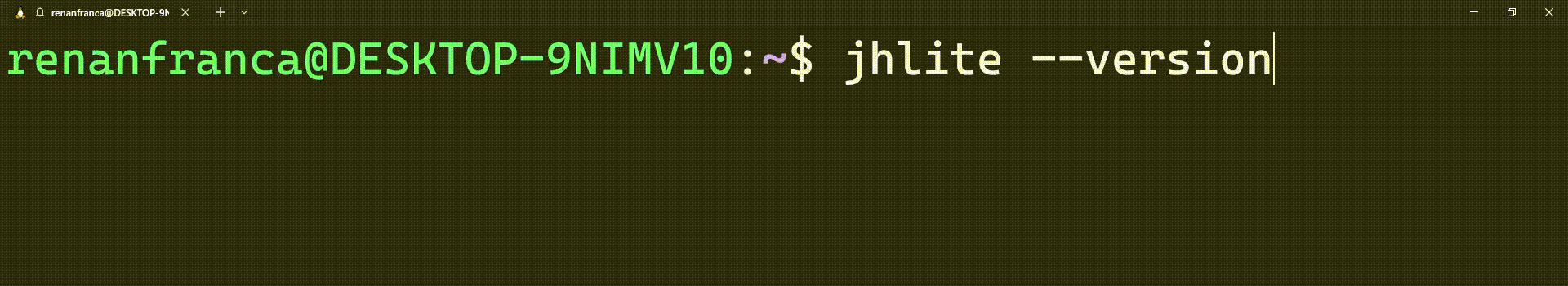

When running commands in the JHipster Lite CLI, users had no visual feedback during operations that took more than a few seconds. This led to uncertainty - is the application still running? Is it stuck? Should I cancel and try again?

I wanted to fix this issue by adding a loading animation that would provide visual feedback during command execution.

The Solution: A Hexagonal ProgressStatus

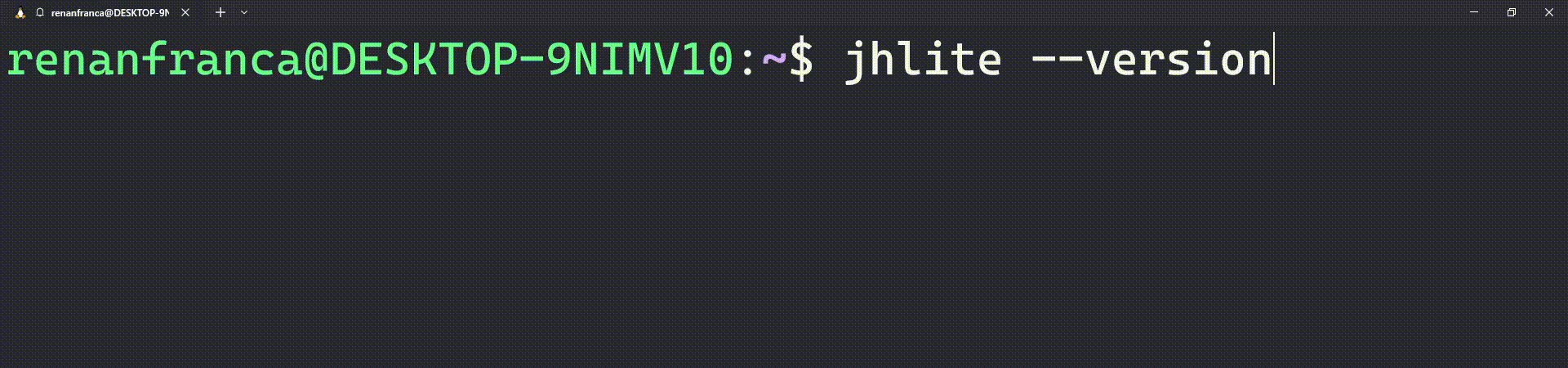

I created a loading animation module that follows the hexagonal architecture principles that JHipster Lite is known for. Here’s a demo of what I implemented:

Exploring Available Libraries

Before implementing my own solution, I explored existing libraries:

1. magic-progress: I tried using this library but encountered errors when running the jhlite command. Looking at the source code, I found no tests, and the project hadn’t been maintained since August 2020.

2. progressbar: This library didn’t have spinner animations, which was a key requirement for our user experience.

Given these limitations, I decided to implement a custom solution that would perfectly fit our needs.

The ProgressStatus Module

I created a ProgressStatus module following hexagonal architecture principles:

Hexagonal Architecture Implementation

├── domain
│   └── ProgressStatus.java
├── infrastructure
│   └── primary
│       └── SpinnerProgressStatus.java
└── package-info.java

The code follows a clean hexagonal architecture pattern:

1. Domain Layer (Port) - The ProgressStatus interface defines the core contract
   ProgressStatus.java - (click to expand)
2. Infrastructure Layer (Adapter) - The SpinnerProgressStatus class implements the interface for spinner animation
   SpinnerProgressStatus.java - (click to expand)

This separation allows us to:

• Keep the core logic independent of visual animation implementation
• Easily test with mock implementations
• Add new progress indicator types without changing core logic

Key Features

1. Animated Unicode Spinner

The spinner uses Unicode braille patterns for a smooth rotating animation:

private static final String[] SPINNER_FRAMES = { "⠋", "⠙", "⠹", "⠸", "⠼", "⠴", "⠦", "⠧", "⠇", "⠏" };

2. Color-Coded Messages

The animation implements ANSI color support:

• Cyan for in-progress operations
• Green for success messages
• Red for failure notifications

3. Asynchronous Animation

The spinner runs in a daemon thread to avoid blocking the main application:

executor = Executors.newSingleThreadScheduledExecutor(r -> {
  Thread thread = new Thread(r, "spinner-animation");
  thread.setDaemon(true);
  return thread;
});
executor.scheduleAtFixedRate(this::renderFrame, 0, 120, TimeUnit.MILLISECONDS);

4. Thread-Safe Operation

The implementation uses atomic operations for thread safety:

private final AtomicBoolean running = new AtomicBoolean(false);

5. Rich Animation Sequences

I added sophisticated animation cycles including:

• Progressive dots (. .. …)
• JHipster-lite symbols (⧓⚡)
• Hexagonal architecture symbol (💎)
• Spring Boot symbol (🍃)

6. Rendering Animation Logic

private void renderSpinner(boolean updateFrame) {
 if (running.get()) {
   if (updateFrame) {
     frameIndex = (frameIndex + 1) % SPINNER_FRAMES.length;
     suffixFrameIndex = (suffixFrameIndex + 1) % SUFFIX_ANIMATION_FRAMES.length;
   }
   String frame = SPINNER_FRAMES[frameIndex];
   String suffix = SUFFIX_ANIMATION_FRAMES[suffixFrameIndex];
   System.out.print(CLEAR_LINE + ANSI_CYAN + frame + ANSI_RESET + " " + currentMessage + suffix);
 }
}

The Little Details That Matter

A cool thing about this animation is that you don’t mind if operations take a little longer because you can see different animations and progress indicators. I included some curious details:

1) The icons on the right represent the technology and architecture used by JHLiteCli. I synchronized the animation so it feels like you can see what is loading, but it’s just an illusion.

2) If the Execute command takes a little bit longer, it shows the bow tie + lightning, which represents jhipster-lite. I designed the animation to match that style.

At the end, I felt the loading time isn’t as bothersome as before. The user experience is much more relaxed and engaging.

Usage Example

Here’s a test case on how ProgressStatus works:

@Test
void shouldShowSuccessMessage(CapturedOutput output) {
   ProgressStatus progressStatus = new SpinnerProgressStatus();
   progressStatus.show("Operation in progress");

   progressStatus.success("Completed successfully");

   assertThat(output.toString()).contains("✓").contains("Completed successfully");
}

ProgressStatusTest.java - (click to expand)

Benefits Beyond Aesthetics

This implementation provides several benefits:

1. Improved User Experience: Users now have visual feedback during operations
2. Reduced Perceived Wait Time: The animation makes waiting feel shorter
3. Clear Operation Status: Success and failure states are clearly indicated
4. Architectural Consistency: The solution follows JHipster’s hexagonal architecture principles

What’s next?

I am going to share how I integrated the ProgressStatus module into the JHipster Lite CLI for:

1. Application Startup: Shows “Loading JHipster Lite CLI” during initialization
2. Command Execution: Displays progress during command running
3. Command Completion: Shows success or failure messages with appropriate colors

The animation is going to be active for all major commands:

• Version command (–version)
• List command (list)
• Apply command (apply)

Conclusion

Adding a loading animation to the JHipster Lite CLI might seem like a small enhancement, but it significantly improves the user experience. By following hexagonal architecture principles, I was able to create a solution that’s not only visually appealing but also maintainable, testable, and extensible.

This project demonstrates how proper architectural design can benefit even UI components. The next time you’re working on a command-line application, consider how you might enhance the user experience with similar feedback mechanisms.
